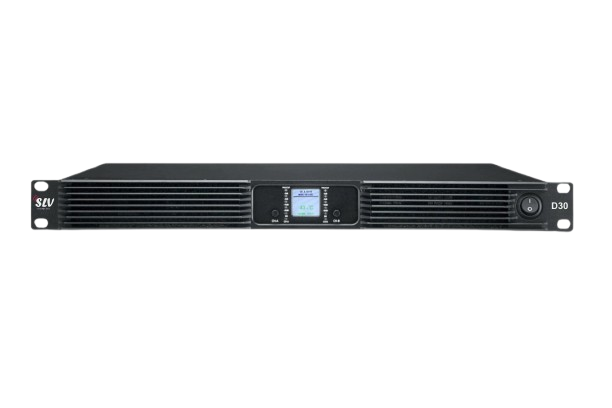

2-Channel Ultra High-Power Professional Amplifier – Extreme Performance Series

Built for the most demanding professional audio applications, this 2-Channel Ultra High-Power Amplifier delivers massive output, superior clarity, and uncompromising reliability. Ideal for heavy subwoofer loads, large touring rigs, line array systems, and high-power installations, it combines PFC power technology, ultra-low distortion, and an exceptional damping factor to ensure clean and controlled sound at any volume.

🔌 Power Ratings (RMS Output)

• 2 × 3000W @ 8Ω
• 2 × 5100W @ 4Ω
• 2 × 7140W @ 2Ω
• 10200W @ 8Ω (Bridge Mode)
• 14280W @ 4Ω (Bridge Mode)

Perfect for driving large subwoofers, dual-18" boxes, line arrays, and high-power touring systems.

🎵 Audio Performance

• Frequency Response: 20Hz – 20kHz (±0.5 dB @ 1W/8Ω)
• THD: <0.5% (Typical: <0.05%)
• IMD: <0.05%
• Slew Rate: 50 V/µs @ 8Ω
• Damping Factor: >5000 (20–200 Hz @ 8Ω)
• Signal-to-Noise Ratio: >110 dBA (A-weighted)
• Crosstalk: >66 dB @ 1 kHz
• Input Impedance: 10 kΩ balanced
• Gain Sensitivity Options: 32 dB / 35 dB / 38 dB / 41 dB

Engineered to deliver tight, punchy bass, clean mids, and distortion-free highs even under full load.

⚡ Power Supply & Efficiency

• PFC Power Supply (Power Factor Correction)
• Rated Power Input: 100–240V AC ±10% (50/60Hz)
• Operating Voltage Range: 90V – 270V
• Power Factor: >0.95 @ loads above 500W
• Standby Consumption: 47W (0.8A)

PFC ensures stable performance on long power lines, low-voltage situations, and outdoor events.

🌡 Thermal Management

• Operating Temperature: 0°C – 45°C (32°F – 113°F)
• Cooling System: High-efficiency tunnel-through cooling
• Auto Shut-Off Protection if temperature exceeds 75°C

Keeps your amplifier safe during extended high-power sessions.

🎚 Front Panel Controls & Indicators

• Input Signal LED: One green LED per channel (> -40 dB)
• Output LEDs: Four green LEDs (-20dB, -10dB, -5dB, -3dB)
• Dual LED (Yellow/Red): Clip / Overheat / Overload / Protection
• Mode Indicators: Stereo / Mono / Bridge
• LED Display: Shows real-time temperature & protection status
• Power Switch: “I” ON / “O” OFF
• Dust Filters: Two removable, washable dust-proof cotton filters

🔌 Inputs & Outputs

Signal Inputs

• 4-Channel Mode: One balanced XLR (female, lockable) per channel
• 2-Channel Mode: One balanced XLR female + one balanced XLR male (loop out)

Speaker Outputs

• One SPEAKON output per channel, high-current, secure connection

Power Cord

• Heavy-duty fixed power cable
• 3 × 2.5mm² copper core
• Length: 1.5 meters

Multi-Function Switches

• 2 Sensitivity Switches
• 1 Mode Switch (Stereo / Mono / Bridge)
• 1 Clip Limiter Switch

📦 Dimensions & Weight

• Size: 482 × 44 × 470 mm
• Net Weight: 12 kg
• Packing Size: 580 × 580 × 116 mm
• Shipping Weight: 14 kg

⭐ Perfect For

✔ Large Subwoofer Systems

✔ Touring PA & Line Arrays

✔ Outdoor Concerts & Stadiums

✔ High-Power DJ Setups

✔ Rental & Professional Audio Companies

✔ Permanent Installations Requiring Extreme Output
