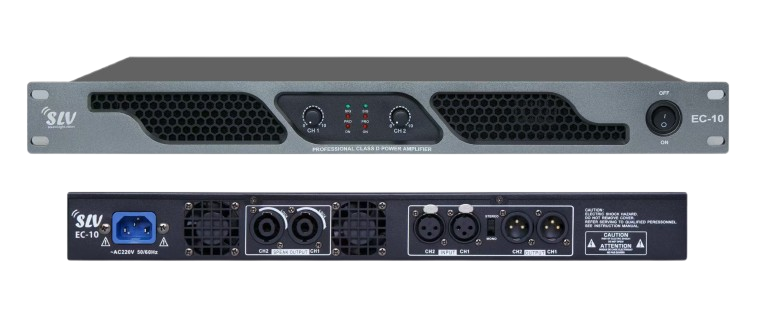

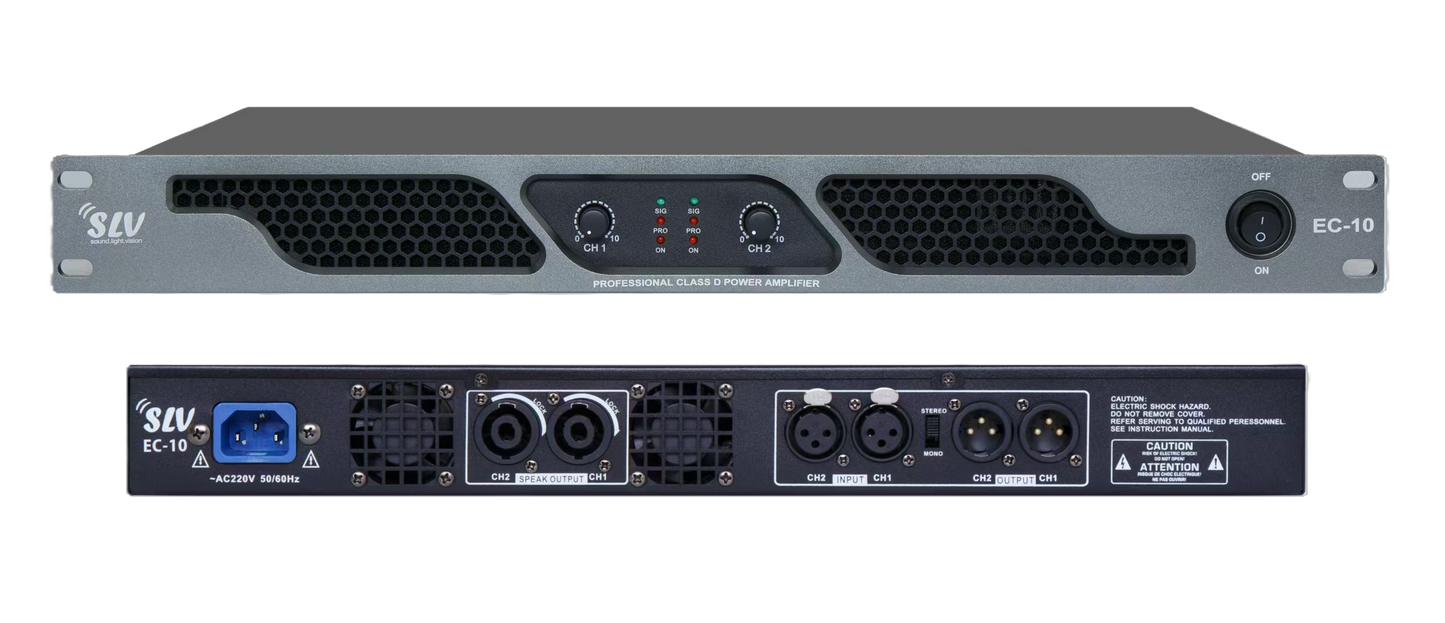

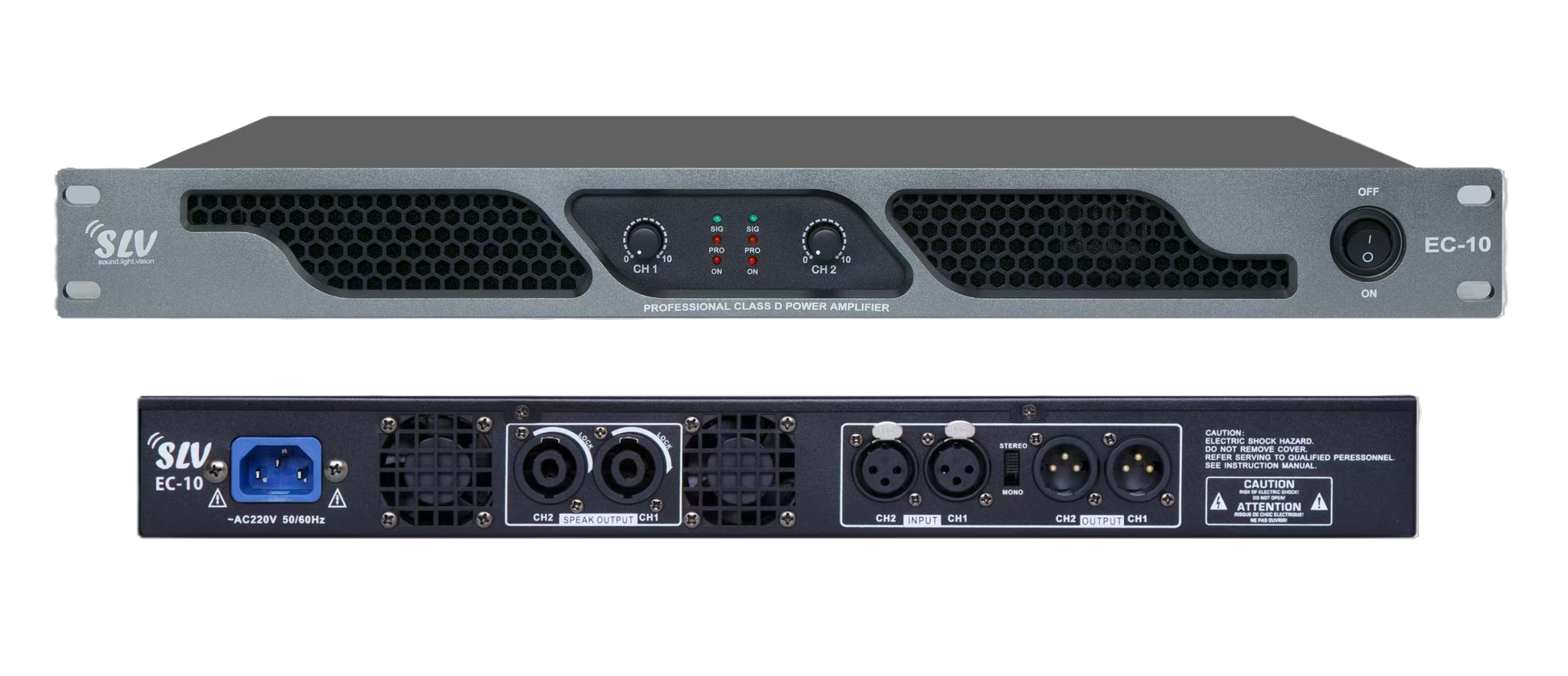

Two-Channel Digital Power Amplifier

Technical Specifications

Output Power

• 8Ω: 2 × 300W
• 4Ω: 2 × 600W
• 2Ω: 2 x 850W

Performance

• Frequency Response: 20Hz – 20kHz (±0.5dB @ 1W / 8Ω)
• Total Harmonic Distortion (THD): 0.02% @ 1kHz / 8Ω
• Signal-to-Noise Ratio (A-Weighted): ≥ 105dB
• Damping Factor: ≥ 250
• Crosstalk: ≥ 75dB
