High-Power Professional Amplifier – Model Specifications

Experience massive output power, ultra-low distortion, and rock-solid stability with this high-performance Class-H Professional Power Amplifier, designed for concerts, touring, rental companies, auditoriums, clubs, and large PA systems.

Power Output

• 2400W × 2 @ 8Ω (Stereo)
• 3200W × 2 @ 4Ω (Stereo)
• 4000W × 2 @ 2Ω (Stereo)
• 4000W @ 8Ω (Bridge)
• 7600W @ 4Ω (Bridge)

Engineered to deliver clean, punchy, and stable output even under heavy load conditions.

Audio Performance

• Frequency Response: 20Hz–20kHz (±0.3dB)
• THD+N: <0.03% @ 8Ω, 1kHz
• Signal-to-Noise Ratio: >93dB
• Slew Rate: 42V/µs
• Damping Factor: >1000
• Crosstalk: >70dB @ 8Ω, 1kHz

Produces exceptional clarity, tight bass, and distortion-free sound at all levels.

Input & Output

• Input Sensitivity: 0.77V / 1.0V / 1.4V
• Input Impedance: 10kΩ (Unbalanced) / 20kΩ (Balanced)
• Inputs: XLR-F, XLR-M
• Outputs:
• Two red/black binding posts
• Speakon NL4 connector

Technology & Circuitry

• Class-H Output Circuitry for high efficiency and low heat
• Rear-to-front airflow cooling system
• Progressive volume control for stable power-up
• German 16A Suckho power cord included

Protection System

Built-in intelligent protection circuits:

• Soft start
• DC protection
• Short-circuit protection
• Overload clip limiting
• Overheat protection

Ensures long-term reliability during extreme performance conditions.

Front & Rear Panel Features

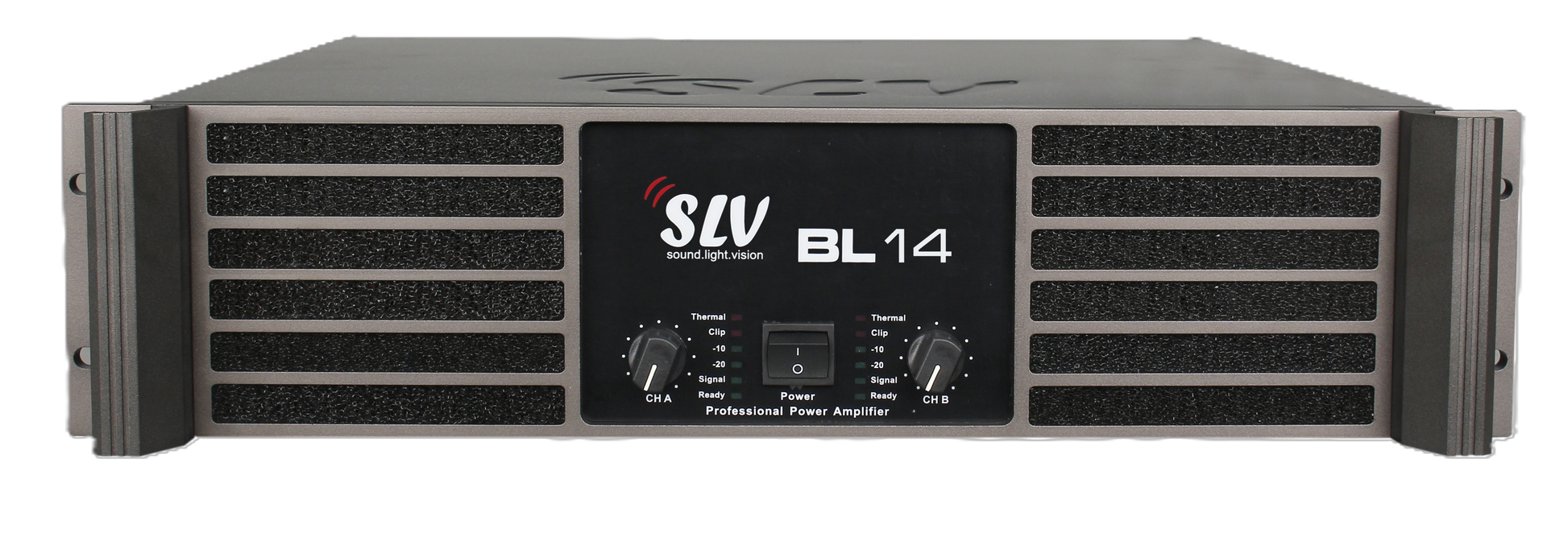

Front Panel

• Signal LED
• Clip indicator
• Protection indicator
• Power LED
• Bridge indicator
• Parallel mode indicator

Rear Panel

• Volume control knobs
• Stereo / Parallel / Bridge mode switch
• Input sensitivity selector
• Low-pass & high-pass filter switches

Dimensions & Weight

• Packing Size: 814 × 583 × 230 mm
• Gross Weight: 49 kg

Designed for heavy-duty touring and installation environments.
