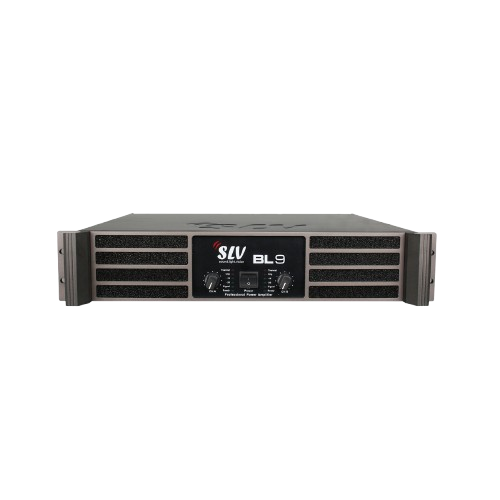

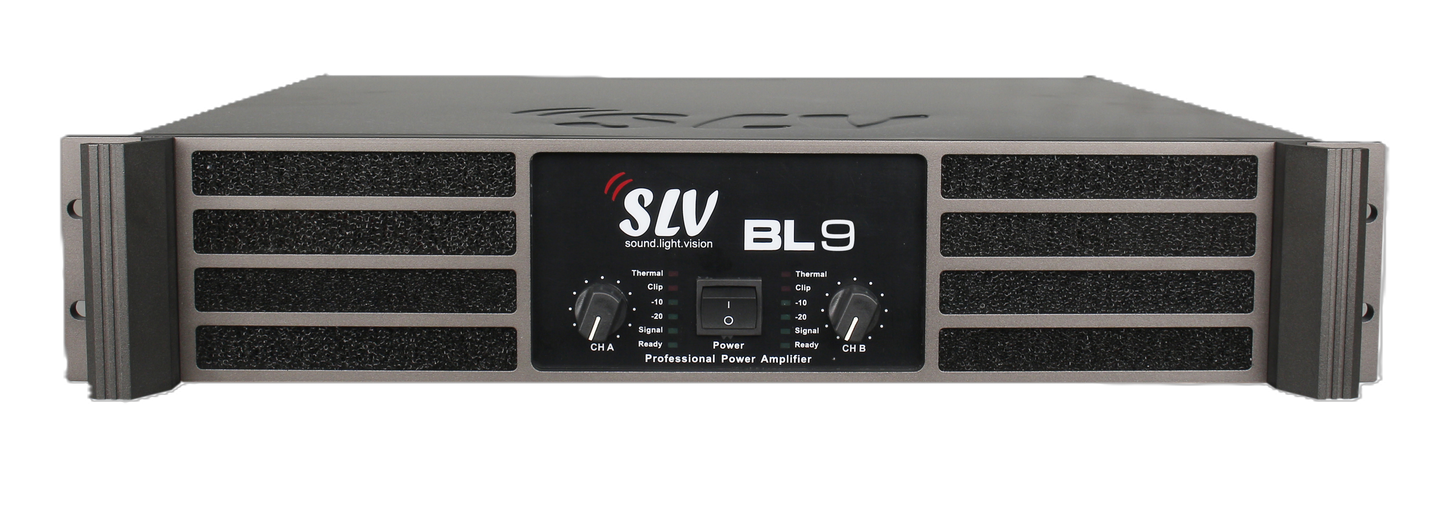

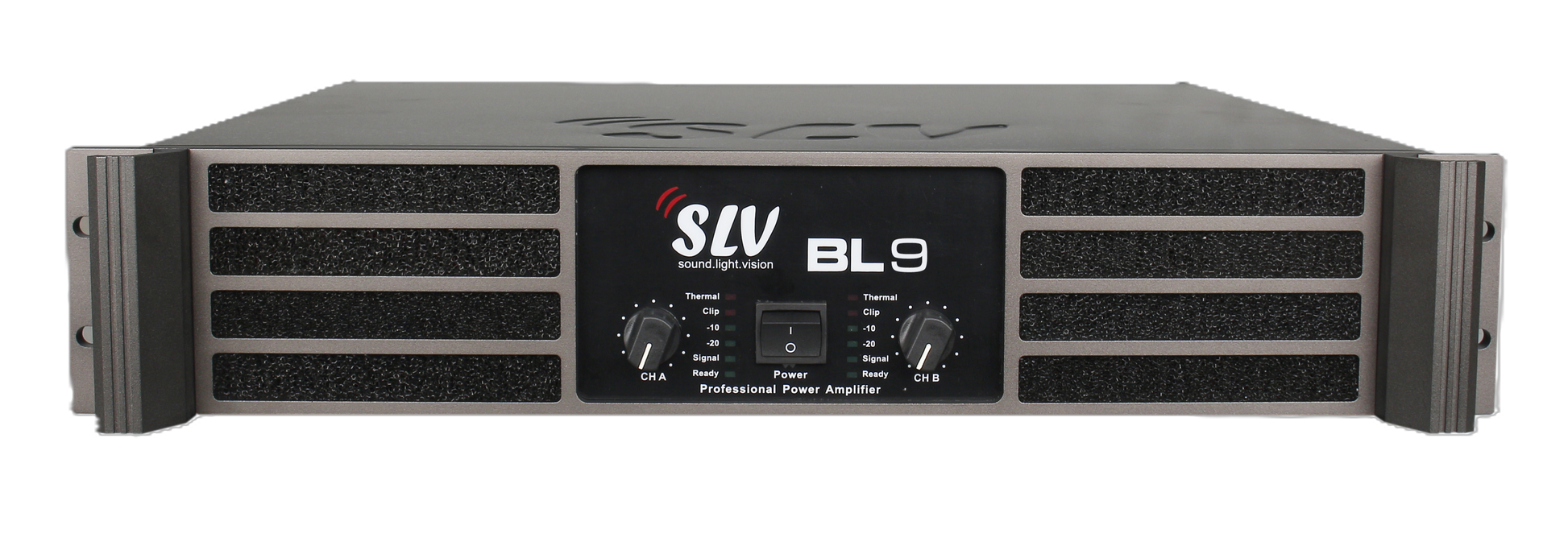

Black Series BL 9

MODEL BL9

8-ohm stereo power** 1175wx2

4-ohm stereo power** 1700wx2

2-ohm stereo power** 2200wx2

8-ohm bridge power**  3300w

4 ohm Bridge power 4500w

Other Specifications :

Frequency Response - 20Hz-20KHz +/-0.3dB

THD+N - <0.03%@8ohm 1KHz

S/n Ratio - >90dB

Slew Ratio - 30V/us

Damping - Factor >1000

Crosstalk - >70dB@8ohm 1KHz

Input - Sensitivity 0.77V/1.0V/1.4V

Input - Impedance(balance/unbalance) 10Kohm/20kohm

Voltage - Gain (senstivity:8ohm) 38dB

Output - Circuitry CLASS H

Cooling - Air flow from rear to front

Protection - Soft start, DC, Short circuit, Overload clip limit, overheat, progressive volume

Input - XLR-F, XLR-M

Output - Two red and black binding post, Speakon Nl4

Front Panel - Front panel indicator: signal, clip, protect, power indicator, bridge, parallel power

Rear Panel - switch volume control knob.

Stereo/ parallel / bridge switch, input sensitivity switch, low pass & high pass filter

Dimension / Weight

Packing Dimensions - 583*634*150

G.w - 22kg

Attached power cord
