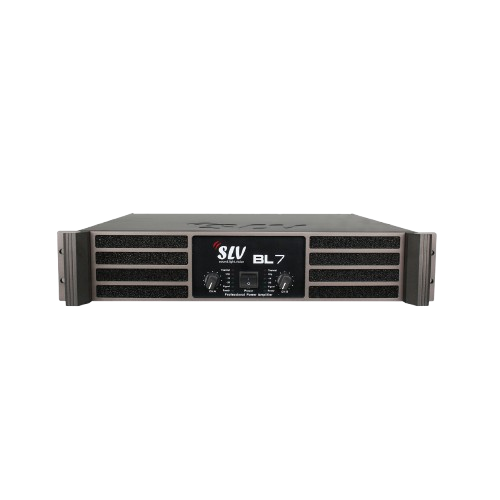

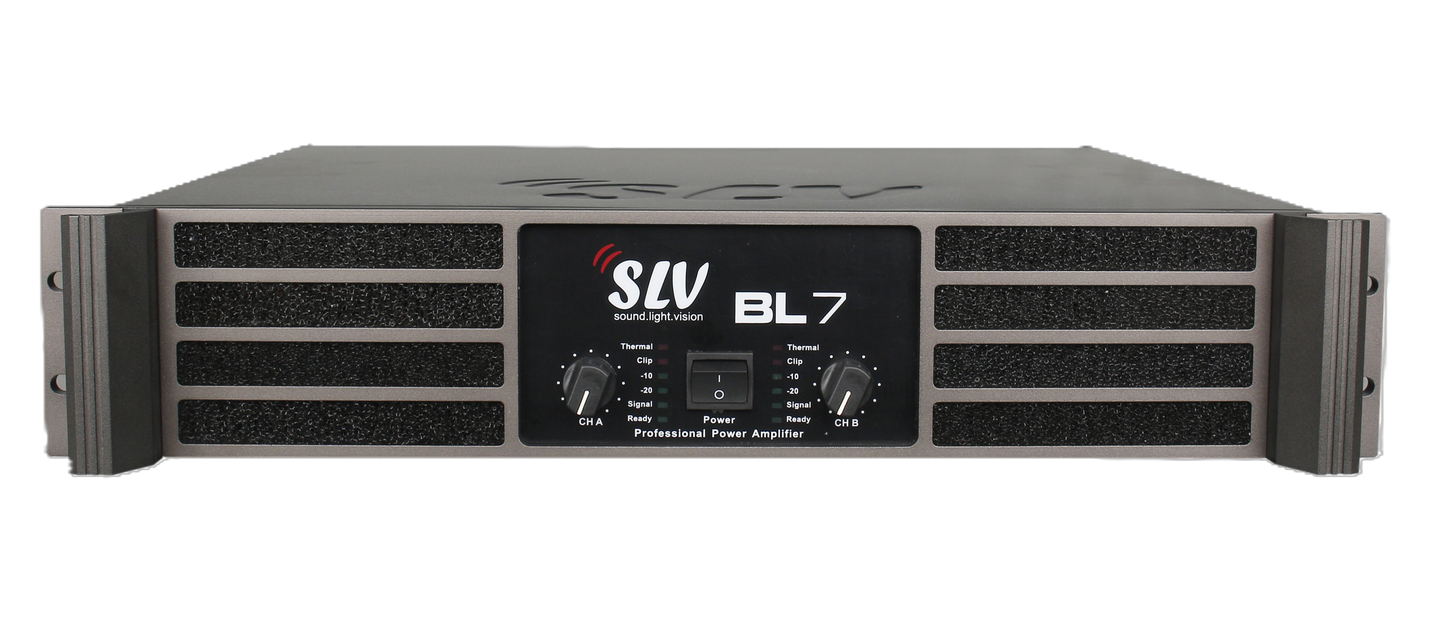

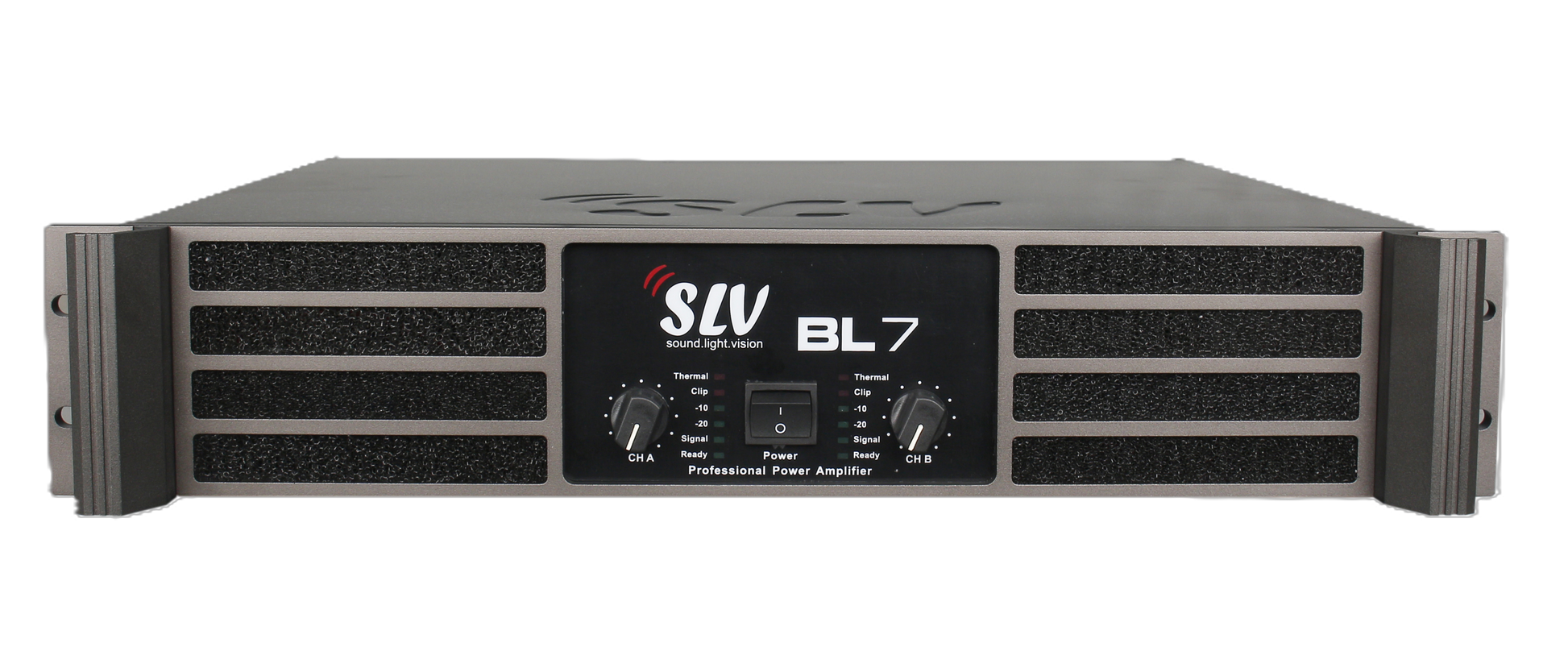

Black Series BL 7

MODEL

8 ohm stereo power** 850wx2

4 ohm stereo power** 1275wx2

2 ohm stereo power** 1700wx2

8 ohm bridge power** 2550w

4 ohm Bridge power** 3400w

Other Specifications

Frequency Response - 20Hz-20KHz +/-0.3dB

THD+N - <0.03%@8ohm 1KHz

S/n Ratio - >90dB

Slew Ratio - 30V/us

Damping - Factor >1000

Crosstalk - >70dB@8ohm 1KHz

Input - Sensitivity 0.77V/1.0V/1.4V

Input - Impedance(balance/unbalance) 10Kohm/20kohm

Voltage - Gain (senstivity:8ohm) 38dB

Output - Circuitry CLASS H

Cooling - Air flow from rear to front

Protection - Soft start, DC, Short circuit, Overload clip limit, overheat, progressive volume

Input - XLR-F, XLR-M

Output - Two red and black binding post, Speakon Nl4

Front Panel - Front panel indicator:signal,clip,protect,power indicator,bridge,parallel power

Rear Panel - switch volume control knob.

Stereo/ parallel / bridge switch, input sensitivity switch, low pass & high pass filter

Dimension / Weight

Packing Dimensions - 583*533*150

G.w - 19kg

Attached power cord
