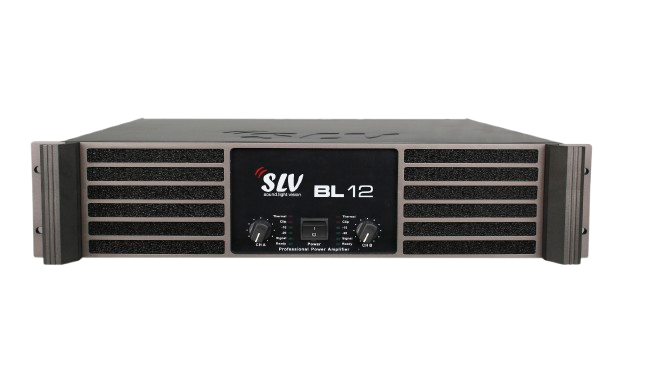

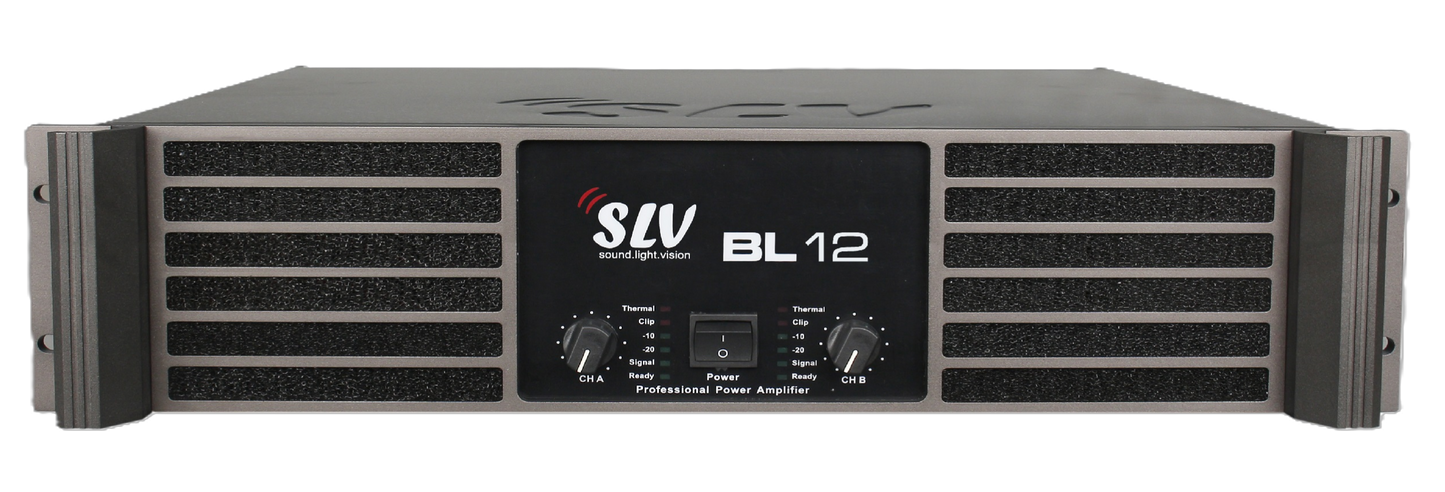

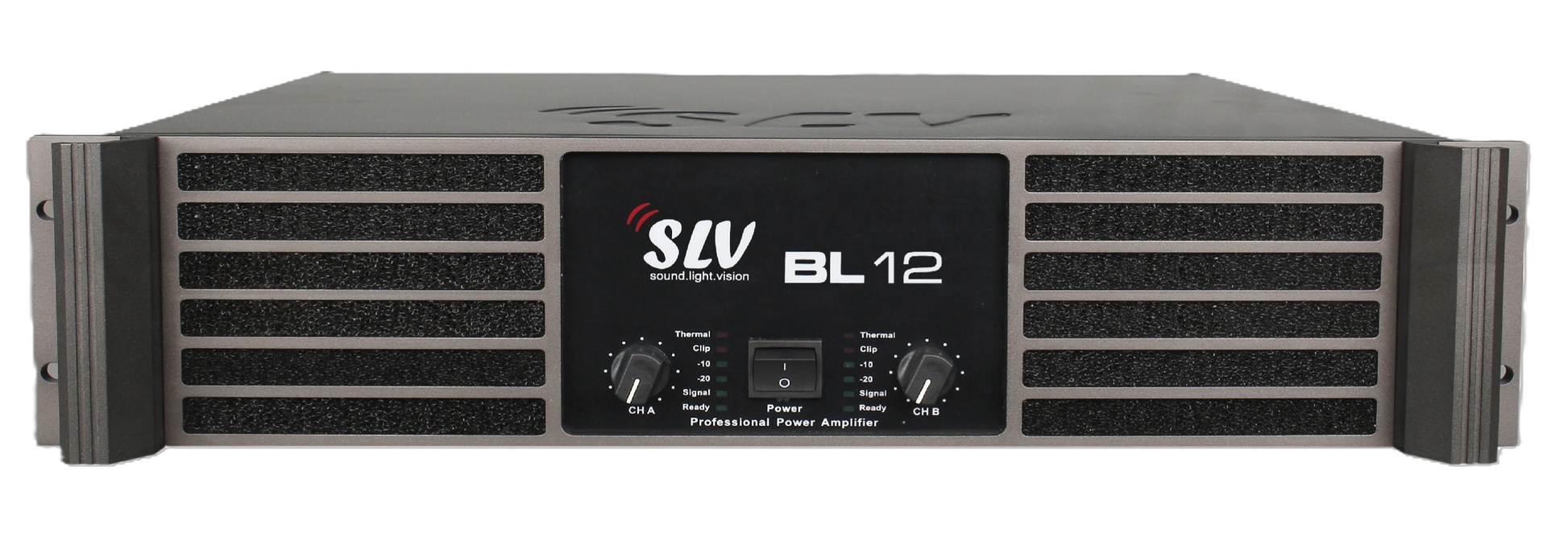

Professional Class-H High Power Amplifier – 1600W × 2 @ 8Ω | 6000W Bridge

Designed for large PA systems, subwoofers, concerts, events, and rental companies, this High-Power Class-H Amplifier delivers exceptional output with ultra-low distortion, fast response, and advanced protection. Built with heavy-duty components and optimized cooling, it ensures stable and powerful performance even under continuous high loads.

🔌 Power Output (RMS)

• 1600W × 2 @ 8Ω (Stereo)
• 2300W × 2 @ 4Ω (Stereo)
• 3000W × 2 @ 2Ω (Stereo)
• 4400W @ 8Ω (Bridge)
• 6000W @ 4Ω (Bridge)

Ideal for powering dual 18" subwoofers, full-range tops, line arrays, and high-demand sound systems.

🎵 Audio Performance

• Frequency Response: 20Hz – 20kHz (±0.3 dB)
• THD+N: <0.03% @ 8Ω, 1 kHz
• Signal-to-Noise Ratio: >93 dB
• Slew Rate: 40 V/µs
• Damping Factor: >1000
• Crosstalk: >70 dB @ 8Ω, 1 kHz
• Input Sensitivity: 0.77V / 1.0V / 1.4V
• Input Impedance: 10 kΩ (balanced) / 20 kΩ (unbalanced)
• Voltage Gain: 38 dB

Ensures tight bass control, strong dynamics, and clean, distortion-free sound across the entire frequency range.

⚙️ Technology & Design

• Amplifier Topology: Class-H high-efficiency output stage
• Cooling: Rear-to-front airflow cooling system
• Protection Features:
• Soft start
• DC protection
• Short-circuit protection
• Overload & clip limiter
• Overheat protection
• Progressive volume startup

Built to handle heavy subwoofer loads and continuous high-volume operation.

🔌 Input & Output Connectivity

Inputs

• XLR-F (balanced input)
• XLR-M (balanced link/output)

Speaker Outputs

• 2 × Red/Black Binding Posts
• 1 × Speakon NL4 Connector

Compatible with professional touring and installation systems.

🎚 Front & Rear Panel Controls

Front Panel Indicators

• Signal
• Clip
• Protect
• Power
• Bridge mode
• Parallel mode

Rear Panel Features

• Independent volume control knobs
• Stereo / Parallel / Bridge mode switch
• Input sensitivity switch (0.77V / 1.0V / 1.4V)
• Low-pass & High-pass filter switch

Gives you full flexibility for different speaker setups and tuning preferences.

📦 Dimensions & Weight

• Packing Size: 683 × 583 × 210 mm
• Gross Weight: 40 kg
• Power Cord: Heavy-duty German 16A Suckho cable included

⭐ Best Suited For

✔ Touring & Stage Sound

✔ DJ & Live Events

✔ Rental Sound Companies

✔ Large Subwoofers & Bass Bins

✔ Auditoriums & Outdoor Venues

✔ High-Power Installations
